ES02 Pro Powder Coating System

ES02 Pro Powder Coating System

Click here for Description-Instructions

SpectraCoat ES02 Pro powder coating system. American-manufactured and custom built to order for unrivaled industrial performance, featuring the state of the art VectorWave board, designed, and manufactured by Powder System Solutions. It boasts a full 0-100 KV adjustable gun output with the simplicity of use and outstanding performance expected from an authentic PSS powder coating system. This model now comes standard with the patented electronic VectorWave board to help combat Faraday Cage Effect. An industry first, the VectorWave board produces a perfect transfer of powder coating paint to problematic Faraday Cage areas including tight corners and concave surfaces. With the revolutionary VectorWave board enabled, the gun output voltage will automatically cycle through a user defined and selected KV range creating a barrage of unlike charged powder particles thereby eliminating like-charged powder particle repulsion. On VectorWave board equipped units, this feature doubles as a multiple coat setting for top coating purposes.


Unlike the ES02+, this package provides constant fluidization right out of the box. The purpose of fluidization is two fold. First, it allows powder coatings to easily be transported from the hopper to the gun with a high degree of uniformity and consistency. Second, fluidization serves to precondition the powder, breaking up agglomerations, removing absorbed moisture, and improving the handling and flow of the material.

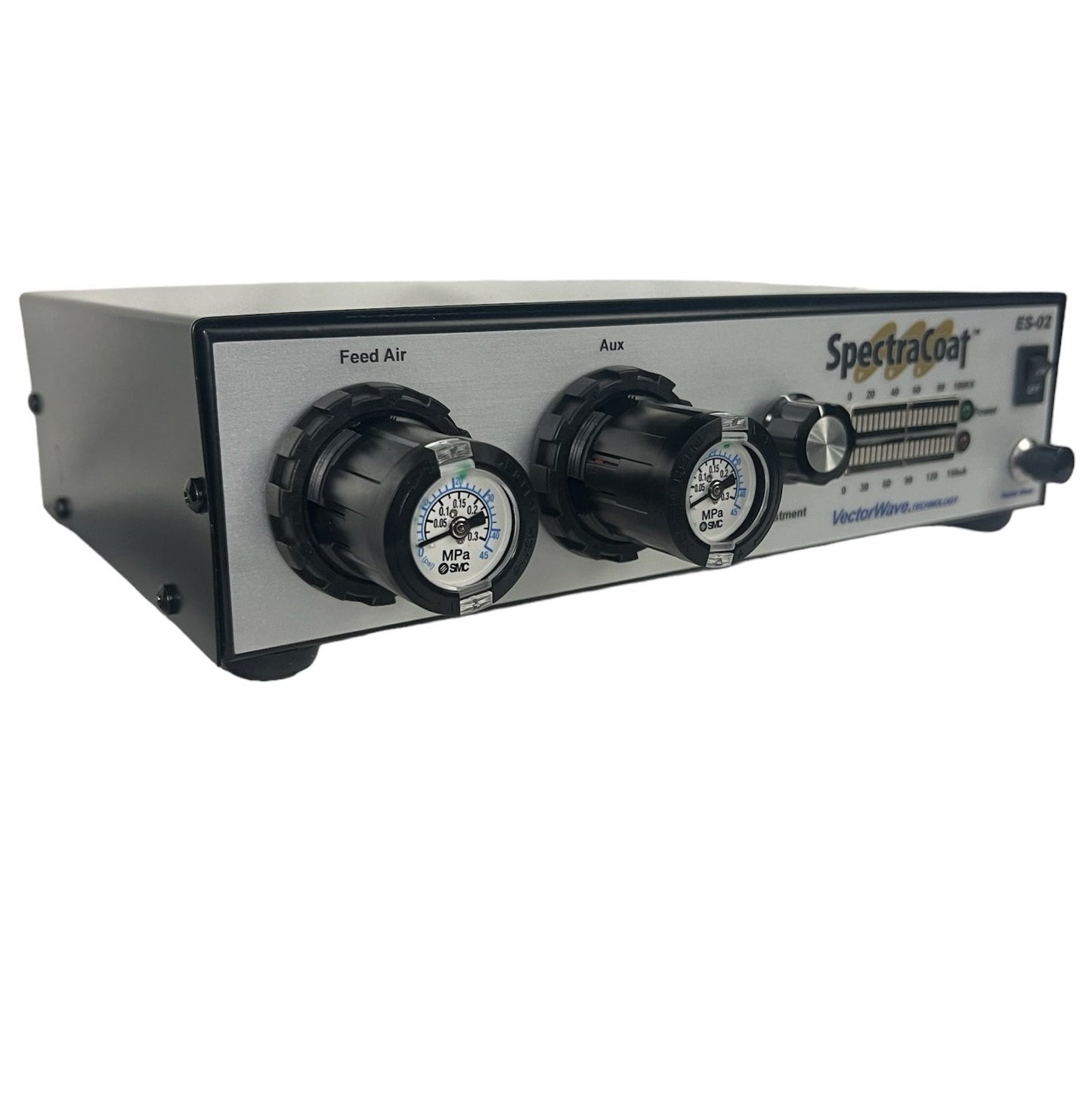

The freshly redesigned ES-02 controller has two air regulators with built in gauges. The main air regulator is standard Feed Air and the second air regulator is Dosage Air. Since this package comes standard with a 2 LB constant fluidizing hopper and machined aluminum powder pump, a fluidizing hopper regulator kit is also included to allow for control of Fluidizing Pressure to the hopper base. This system comes with a hopper style gun.

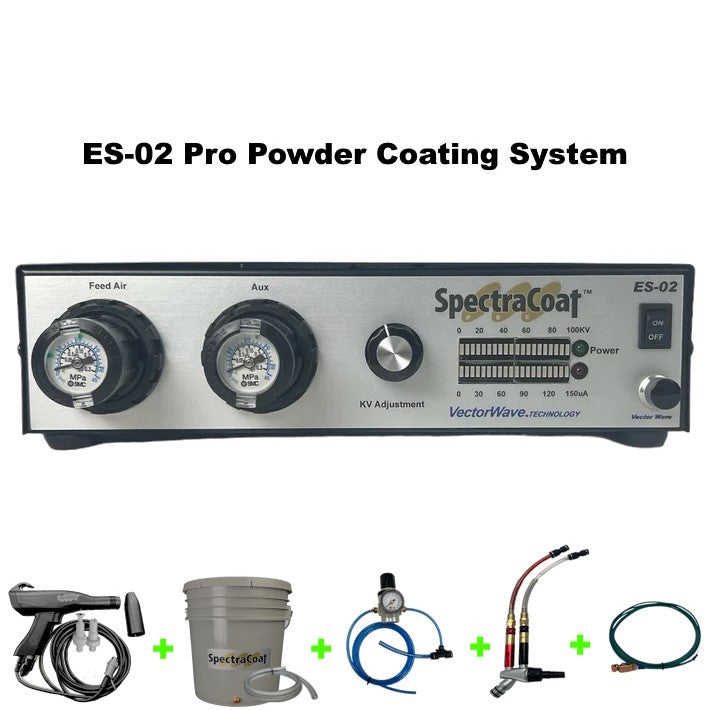

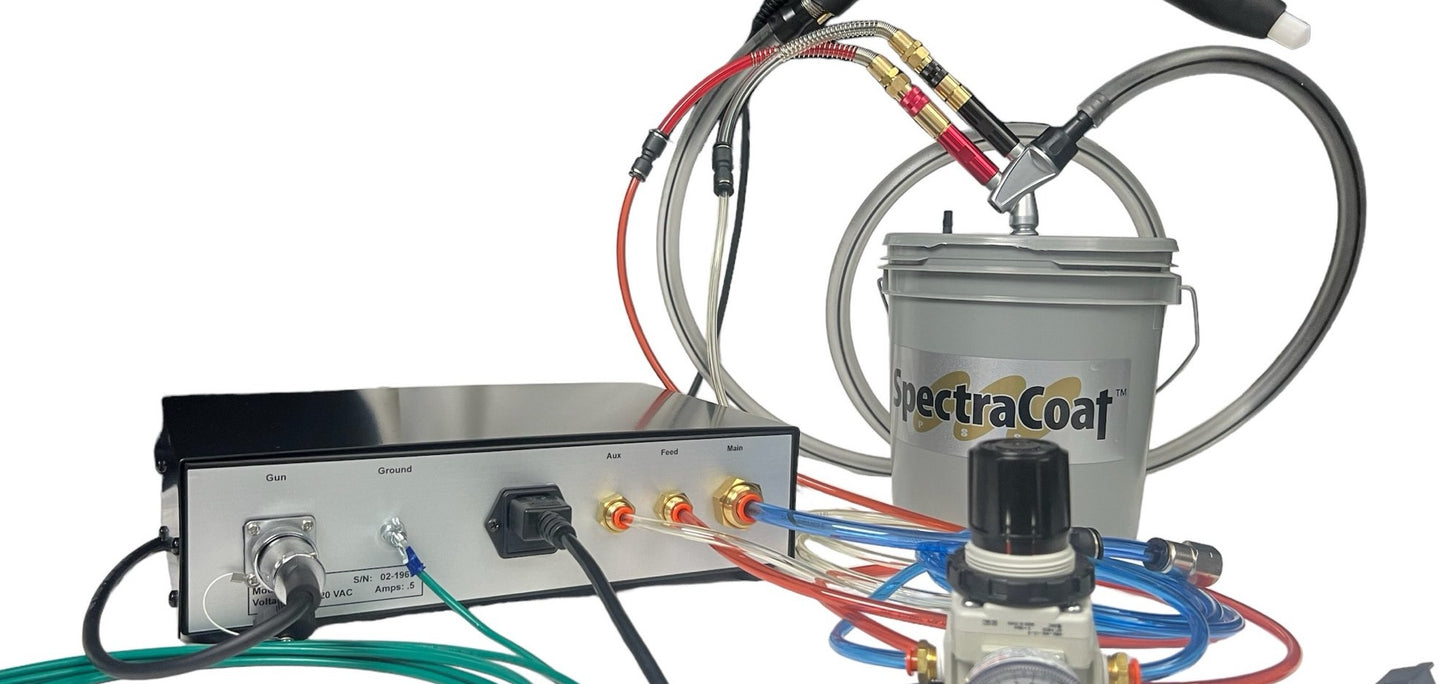

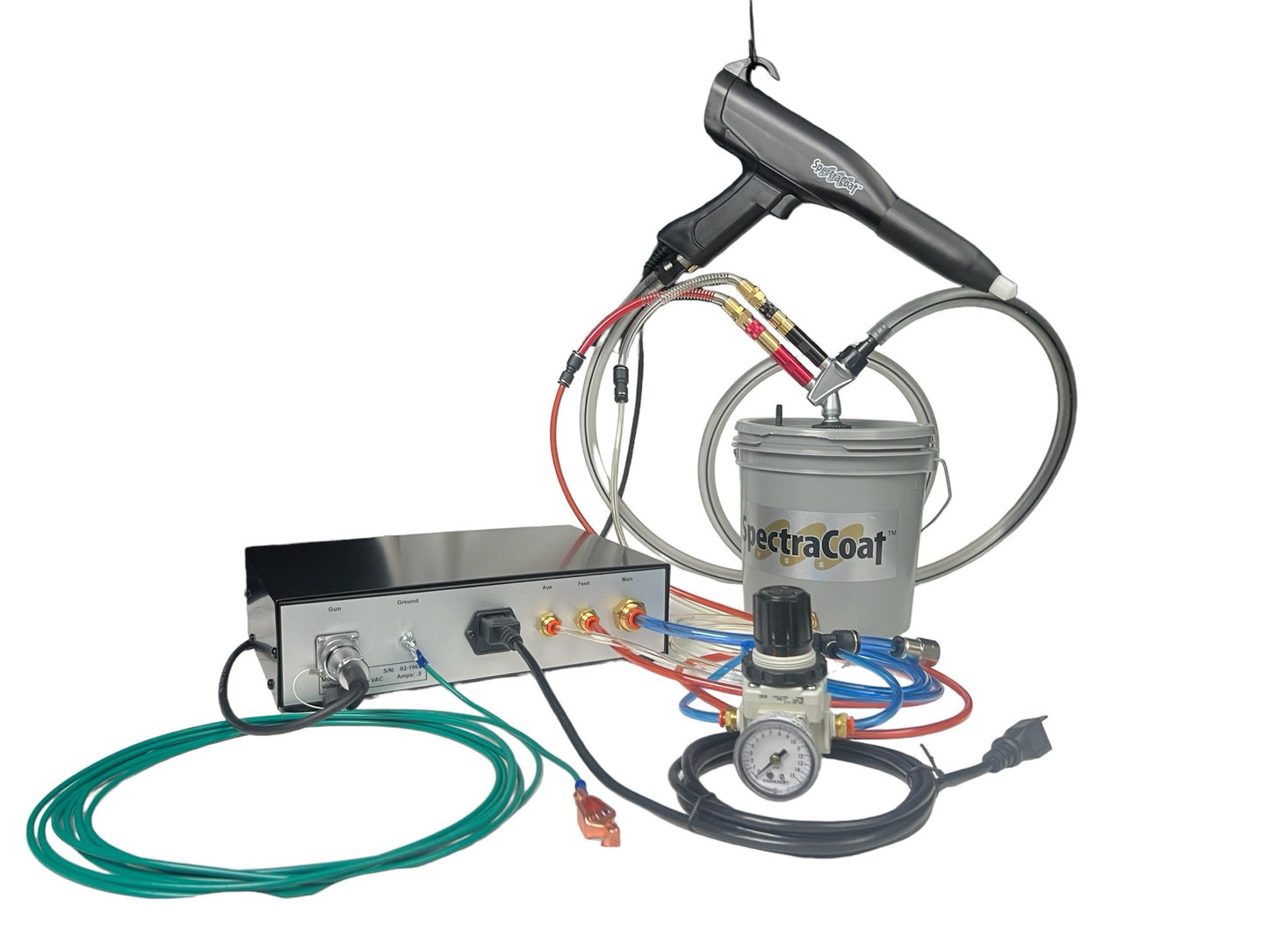

SpectraCoat ES02 Pro powder coating guns system includes:



    • The all new manual gun VIII

    • 100 KV ES02 controller with exclusive VectorWaveâ„¢ board & automatic 110-220 input voltage


    • Detachable hopper style industrial powder coating gun with 15 ft cord


    • All cables, air hoses, and connections


    • 12' industrial powder hose


    • 1 - fan spray electrode


    • 1 - round spray electrode


    • 1 - 2 LB constant fluidizing hopper w/ powder pump & pickup tube


  • 1 - fluidizing hopper regulator kit





Please note: Powder coating systems currently have a 3-5 day processing time






*** WARRANTY - 30 DAY MONEY BACK GUARANTEE, RESTOCKING FEE TO APPLY UNLESS RETURN IS DUE TO MANUFACTURER'S DEFECT. This product, as supplied and distributed by Powder Buy The Pound and delivered new is warranted by Powder Buy The Pound against manufacturing defects in materials and workmanship for period of 1 year. This limited warranty begins on the original date of purchase. To receive warranty service, the purchaser must contact Powder Buy The Pound for problem determination and service procedures. Powder Buy The Pound will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal use, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finishes; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by Powder Buy The Pound which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book. Powder Buy The Pound does not warrant uninterrupted or error-free operation of the product. ***


There will be a signature required for delivery on all SpectraCoat gun orders.

Regular price $1,549.49
Regular price Sale price $1,549.49
Sale Sold out

Shipping Weight: 21.0 lb
